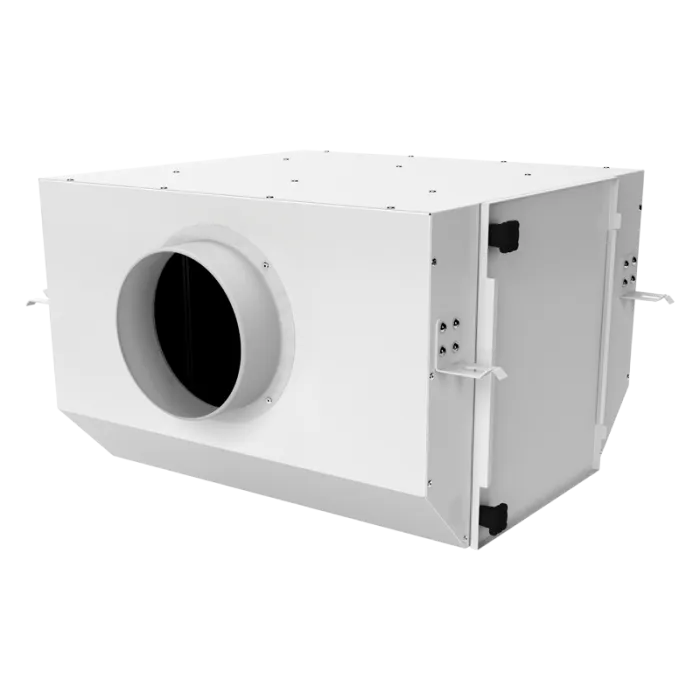

Blauberg CLEANBOX-125-G4-F8-CARBON Cleanbox Complete Indoor Air Quality Filtration System Pollution, H13, F8, G4 - 125mm Duct Connection

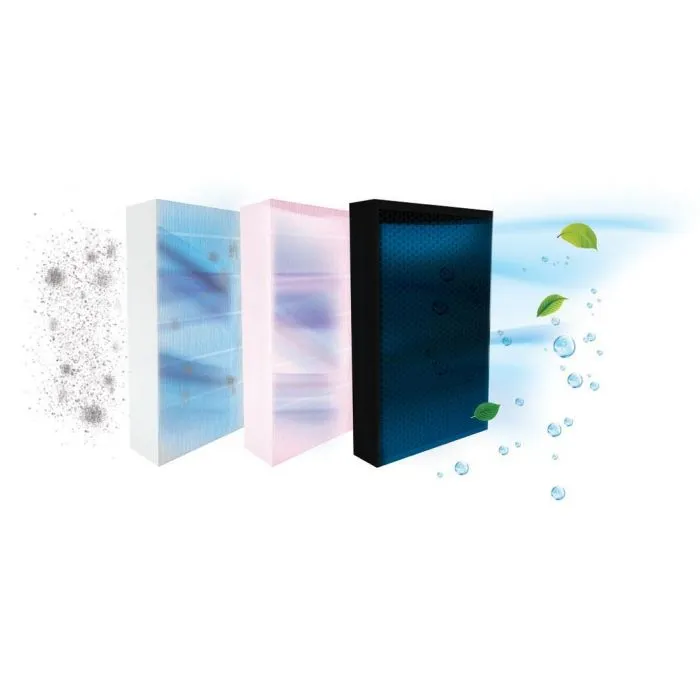

Product DescriptionBlauberg Cleanbox 125 is a three stage filtration system designed specifically for MVHR heat recovery ventilation systems. Significant Nitrogen Dioxide, NOx and pollution can be eliminated when attached to the supply air duct of a heat recovery system entering a building, home or apartment. The first two stages of filtration remove airborne particles down to PM 2.5. The carbon filter is then protected, allowing maximum NOx removal from this third and final air purification stage.
- Activated virgin carbon granules used which have a significantly higher surface area. Less carbon is needed with a greater capacity to adsorb pollution.
- Unique hexagonal integral structure that dramatically reduces air pressure drop. This increases airflow capacity and the overall efficient of the heat recovery system.
- Cleanbox units are significantly smaller in size, easy to install and sensibly priced.
- G3, F8 and Carbon NOx filters cassettes can be purchased separately. No need to replace the whole unit.
- G4 Grade - A high grade synthetic air pre-filter down to PM10 (Particulate Matter), general dust & airborne pollutants.

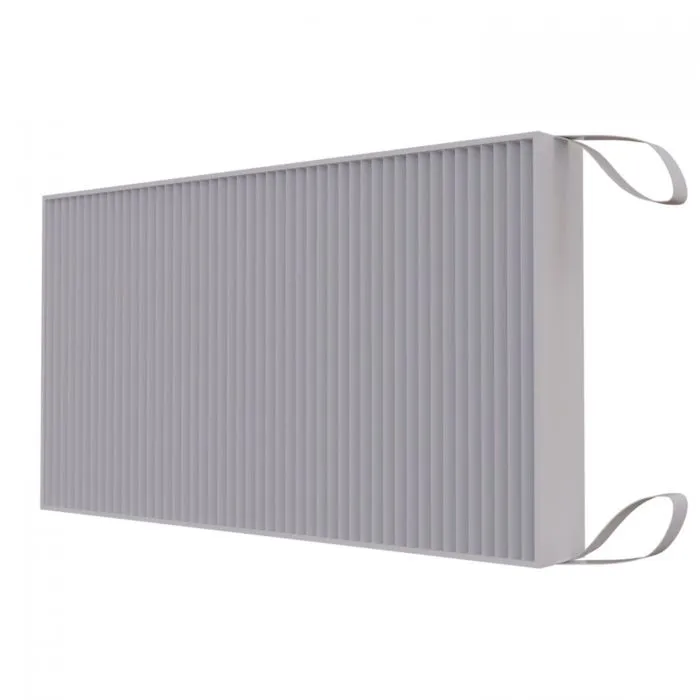

- F8 Grade - A high grade synthetic air filter down to PM2.5 (Particulate Matter), pollen,& mold spores, fungi, bacteria and viruses.

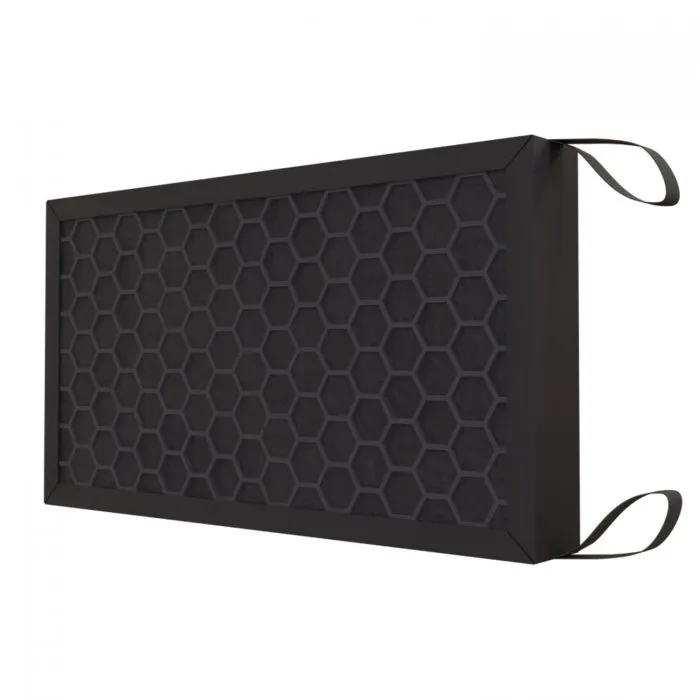

- Activated Carbon - NOx, car exhaust fumes and traffic pollution, Nitrogen Dioxide and other airborne gasses and odors.
Designed to fit 125mm standard MVHR supply air duct connections. Use
- For purification of supply air in ventilation and air conditioning systems installed in various premises.
- Suitable for limited mounting space.
- Compatible with Ø 100 up to 200 mm round air ducts.
- Built-in filters provide efficient air filtration. Up to three filters can be installed into the casing.
- G4 filter provides primary filtration. At the second stage, the secondary filter F8 or HEPA filter H13 can be installed. F8 filter arrests up to 98 % of PM2.5 dust particles. H13 filter arrest up to 99 % of PM2.5 dust particles, pollen and bacteria. For additional elimination of odors and gases.

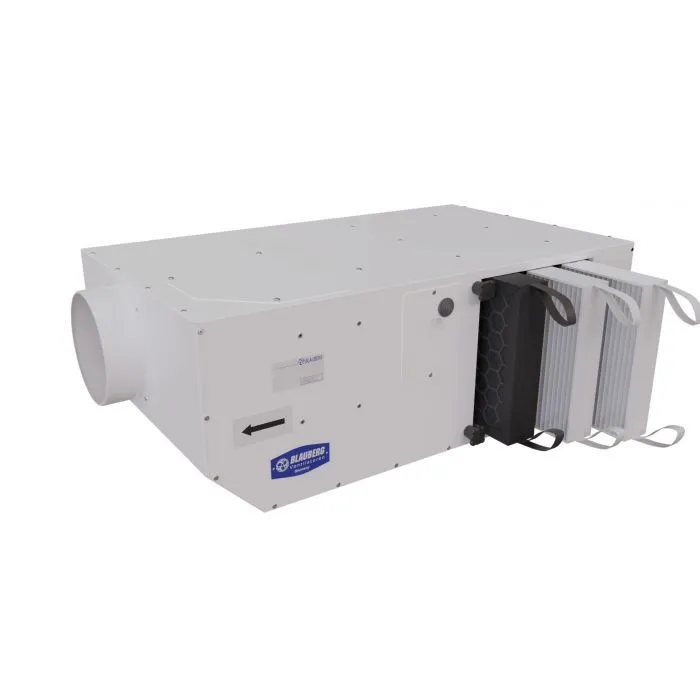

- Quick access to replaceable filters through service panel.
- Due to compact design is the ideal solution for mounting in limited spaces, including the space behind false ceiling.
- Any mounting position.
- Wall or ceiling mounting with fixing brackets supplied as a standard.
- The casing is made of polymer-coated steel.
- Easy access for filter maintenance.
